Why Bypass Doors Save Space in Your Home
Bypass doors are sliding doors made of overlapping panels that travel on parallel tracks mounted inside the door frame, designed specifically to eliminate the swing clearance that traditional hinged doors require. That single design difference is why bypass doors save space so effectively. A standard swinging door needs a clear arc of floor space equal to its full width every time it opens. Bypass doors reclaim 100% of that floor area, making them the most space-efficient interior door option available for closets, pantries, laundry rooms, and narrow hallways. In San Antonio homes where square footage counts, that recovered space is real and usable.
How do bypass doors work to save space?
Bypass doors operate on a two-track system mounted to the door frame header. Each panel hangs from rollers that ride along separate parallel tracks, allowing the panels to slide past each other rather than swing outward. The panels overlap 1 to 1.5 inches at the center when closed, which keeps them aligned and prevents gaps.
The space-saving advantage comes directly from this mechanism. A traditional hinged door swings through a radius equal to its width, typically 28 to 36 inches, and that entire arc must stay clear of furniture, walls, and foot traffic at all times. Bypass doors have a zero-projection profile. They stay within the plane of the wall opening, so the floor space in front of them is always available.
Here is what that means in a practical layout:
- Hinged door (32 inches wide): Requires roughly 8 square feet of clear swing clearance
- Bypass door (same opening): Requires zero swing clearance
- Net gain: Up to 8 square feet of usable floor space per opening
That recovered space matters most in tight rooms: a San Antonio master bedroom where the closet door used to block the dresser, or a Hill Country laundry room where the door competed with the washer.
Pro Tip: Measure your opening height at three separate points, left, center, and right, and use the smallest measurement to size your panels. Uneven headers are common in older Texas homes, and a panel cut to the wrong height will bind or leave a gap.

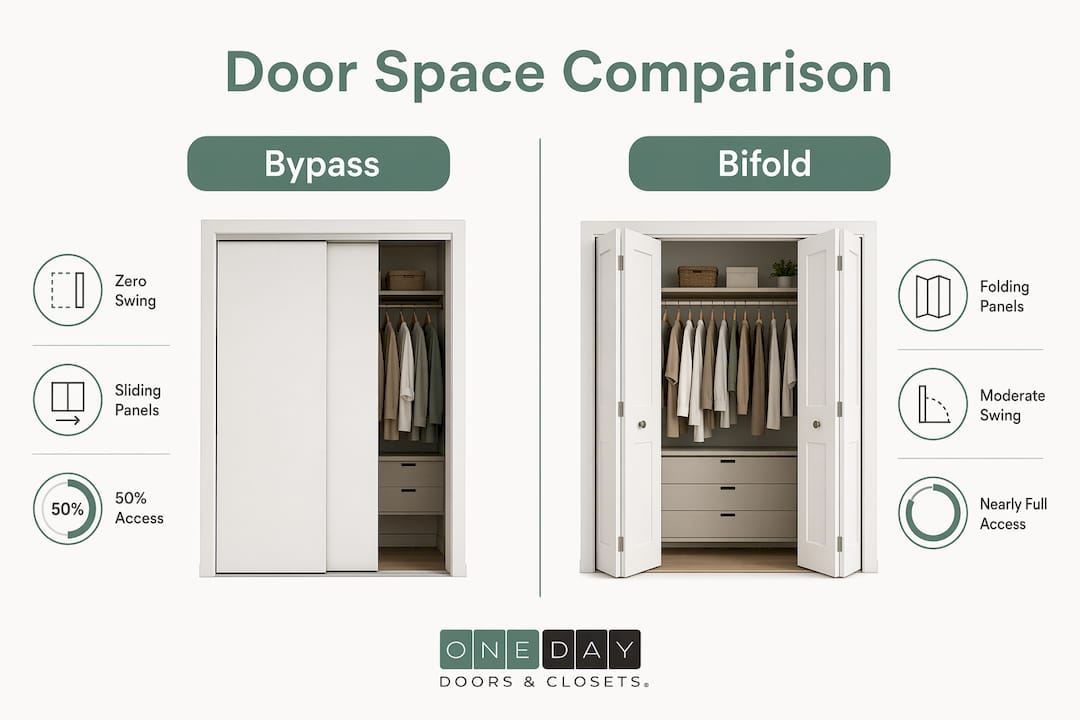

Bypass doors vs. bifold and hinged doors: which saves the most space?
The three most common space-saving door options for closets and interior openings are bypass, bifold, and traditional hinged. Each handles space differently, and the right choice depends on your specific room layout and how you use the space.
Bifold doors fold in half along a center hinge and stack against the door jamb when open. They provide nearly full access to the opening, close to 100%, which is a clear advantage over bypass doors. The trade-off is that bifold panels project into the room when opening, requiring several inches of clearance in front of the opening. They also have more moving parts, which means more hardware to maintain.
Hinged doors offer full access and a clean, traditional look, but they demand the most floor space of the three. Every time you open one, you need a clear arc in front of it. In a small bedroom or a tight hallway, that arc is often the most valuable real estate in the room.
| Door Type | Access Width | Swing Clearance Needed | Best Use Case |
|---|---|---|---|
| Bypass sliding | ~50% at a time | None | Hallways, secondary closets, laundry rooms |
| Bifold | ~100% | Minimal (panel fold) | Primary closets, pantries with deep shelving |
| Hinged (swinging) | 100% | Significant (full arc) | Bedrooms, bathrooms, main living spaces |
Bypass doors have a sleek, zero-projection profile that makes them better suited than bifold doors for narrow hallways and high-traffic areas. That profile also makes them easier to keep clear of furniture. The one honest trade-off: because two panels overlap, you can only access roughly half the opening at any given time. For a frequently used pantry where you need to see everything at once, that limitation matters. For a hallway linen closet or a secondary bedroom closet, it rarely does.

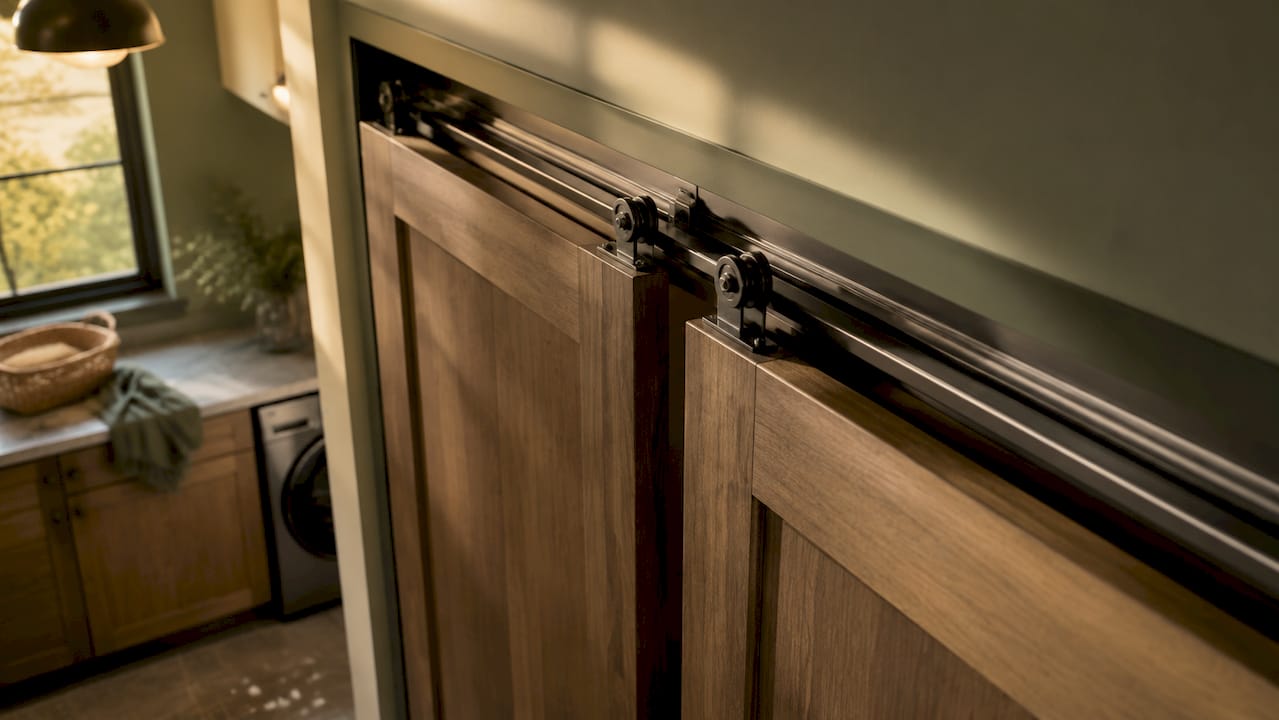

What should you consider when choosing bypass door hardware?
Hardware is where bypass door performance is won or lost. The track, rollers, and floor guide determine whether your doors glide quietly for years or sag, squeak, and scratch within months. Improper hardware selection is the leading cause of bypass door problems, including sagging panels, noisy operation, and misalignment.
Single-track vs. double-track systems
Single-track hardware mounts both panels on one track, with rollers offset to keep them from colliding. Double-track systems give each panel its own dedicated track. Double-track is the stronger choice for heavier doors, mirrored panels, or any opening wider than 6 feet. It distributes weight more evenly and keeps panels aligned under daily use.
Matching hardware to door weight
Roller capacity is rated by door weight. A solid wood panel can weigh 40 to 60 pounds per slab. Lightweight hollow-core panels weigh far less. Using rollers rated below your door’s actual weight causes the most common failure: the panel sags forward, drags on the floor guide, and eventually damages the door face. Always confirm the roller weight rating before purchasing hardware.
Key hardware considerations to review before installation:
- Track material: Steel tracks outlast aluminum in high-use applications
- Roller type: Nylon rollers run quieter; steel rollers carry more weight
- Floor guide: Keeps the bottom of each panel from swinging freely
- Adjustable rollers: Allow fine-tuning of panel height after installation
Pro Tip: Never skip the floor guide. Without a quality floor guide, panels swing freely at the bottom, causing noise, scratches on the floor, and damage to the door face over time. It is the most overlooked component in DIY bypass door installations.
Installation itself is faster than most homeowners expect. Experienced installers complete a standard bypass door setup in under one hour when the track is level and hardware is properly matched to the door. DIY installations take longer, mainly because leveling the track and adjusting rollers requires patience and a good level.
How do mirrored and barn-style bypass doors add value beyond space savings?
Bypass doors are not limited to plain panel designs. Two specialized styles, mirrored and barn-style, extend the space-saving benefits into design territory that standard doors cannot reach.
Mirrored bypass doors
Mirrored bypass doors eliminate the need for a separate standing mirror, which saves both floor space and wall space in one move. In a San Antonio master bedroom, that means you recover the corner where the full-length mirror used to stand. The reflective surface also bounces natural light across the room, making smaller spaces feel noticeably larger and more open. This dual function, storage concealment plus light amplification, makes mirrored bypass doors one of the highest-value upgrades in compact bedrooms.
Barn-style bypass doors
Bypass barn doors solve a specific problem: tight wall space on either side of an opening. A single barn door needs clear wall space equal to the door’s full width to slide open. A bypass barn door uses two overlapping panels on dual parallel tracks, so each panel only needs to travel half the distance. This makes them practical in hallways and laundry rooms where a single panel would have nowhere to go. They also add architectural character that standard bypass panels do not, which matters in Hill Country homes where design details carry weight.
The one consideration worth naming directly: bypass doors only allow access to about 50% of the opening at a time. For a primary walk-in closet where you need full visibility, that is a real limitation. For a pantry, a secondary closet, or a laundry room, it is rarely a problem in daily use.
Key Takeaways
Bypass doors save space by eliminating swing clearance entirely, making them the most floor-efficient door option for closets, hallways, and compact rooms.
| Point | Details |
|---|---|
| Zero swing clearance | Bypass doors reclaim 100% of the floor space a swinging door would consume. |
| 50% access trade-off | Overlapping panels mean only half the opening is accessible at one time. |
| Hardware determines performance | Rollers, track type, and floor guides must match door weight to prevent sagging and noise. |
| Mirrored panels add dual value | Mirrored bypass doors eliminate separate mirrors and amplify light in small rooms. |
| Barn-style solves tight walls | Dual-track barn bypass doors work where single barn doors cannot due to limited wall space. |
My honest take on bypass doors after years of San Antonio installs
I have seen bypass doors transform rooms that homeowners had written off as permanently awkward. A narrow hallway closet in Alamo Heights. A laundry room in a New Braunfels Hill Country home where the original door hit the dryer every single time. In both cases, switching to bypass sliding doors did not just solve a clearance problem. It changed how the room felt to use.
That said, I want to be direct about something most articles skip. Bypass doors are a deliberate design choice, not a universal fix. The 50% access limitation is real, and it matters in the wrong application. I have seen homeowners install bypass doors on a primary walk-in closet and regret it within a month because they could never see the full closet at once. The right question is not just “will this save space?” It is “will 50% access work for how I actually use this space every day?”
Hardware investment is the other thing I push hard on. Hardware aesthetics need equal focus as functionality. Cheap rollers on a heavy mirrored panel will fail. Quality hardware on a well-measured opening will run quietly for a decade. The door itself is visible. The hardware is what you feel every time you open it.
Plan early. Measure three times. And if you are not certain about the track level or roller weight rating, bring in a professional. One afternoon of precision installation saves years of adjustments.
— Devon
Let One Day Doors and Closets of San Antonio handle your bypass door upgrade
If you are ready to recover floor space and refresh your home’s interior, One Day Doors and Closets of San Antonio installs custom bypass and sliding doors with precision, without the mess or multi-day disruption of traditional renovation. We serve San Antonio and the Texas Hill Country with factory-finished doors, matched hardware, and same-day installation that leaves your home clean and functional from day one.
Browse our full range of interior door styles to see bypass, mirrored, and barn-style options available for your home. Every installation starts with a free in-home consultation where we measure your openings, walk through your style options, and give you a clear plan before any work begins. Schedule your free in-home consultation with One Day Doors and Closets of San Antonio today.
FAQ
Why do bypass doors save more space than hinged doors?
Bypass doors slide along parallel tracks and require zero swing clearance, while hinged doors need a full arc of floor space equal to the door width every time they open. That difference can recover up to 8 square feet per opening in a standard room.
How much of the opening can you access with bypass doors?
Bypass doors provide access to approximately 50% of the opening at one time due to the overlapping panel design. This makes them well-suited for hallways, laundry rooms, and secondary closets where full simultaneous access is not required.
What is the most common bypass door hardware mistake?
Selecting rollers that cannot support the door panel’s weight is the leading cause of sagging, noise, and door damage. Always match roller weight ratings to the actual weight of your door slab before purchasing hardware.
Are mirrored bypass doors worth it in small bedrooms?
Yes. Mirrored bypass doors eliminate the need for a separate standing mirror and reflect light to make rooms feel larger, delivering two space-saving benefits from a single door upgrade.
How long does bypass door installation take?
A properly measured bypass door installation typically takes under one hour for an experienced installer when the track is level and hardware is correctly matched to the door.
